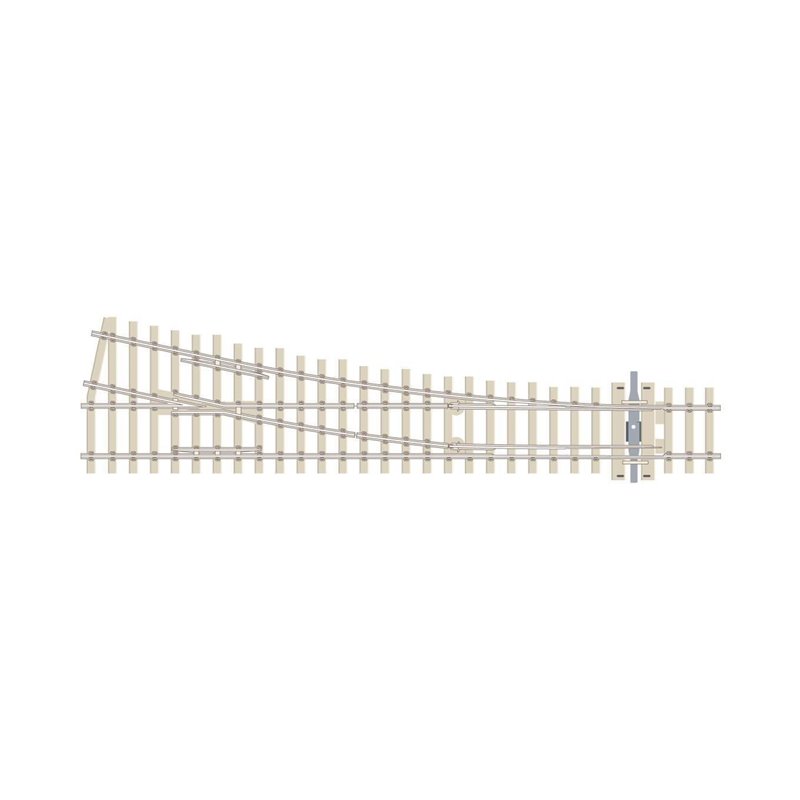

Turnout, Medium Radius, Concrete, Right Hand

Turnout, Medium Radius, Concrete, Right Hand

These turnouts emulate the modern style of concrete sleepered trackwork which features Pandrol (TM) style rail fixings. Concrete sleepered turnouts had previously been impractical due to the concrete being broken by the impact caused as wheels passed through the frog area. This has been resolved by redesigning the frog so that the flange supports the wheel across the gap in the running rail.

Technical Specification:

• Length: 219mm
• Frog Angle: 12 Degrees
• Radius: 914mm

Recommended to be used with:

• SL-110 Conducting Rail Joiners: Nickel Silver for PECO Code 75 track
• SL-111 Insulated Rail Joiners for PECO Code 75 track
• SL-14 Track Fixing Pins: Chemically blackened mild steel for unobtrusively pinning down trackwork

Ref.: SL-E1095 - Also listed as SLE1095
